General

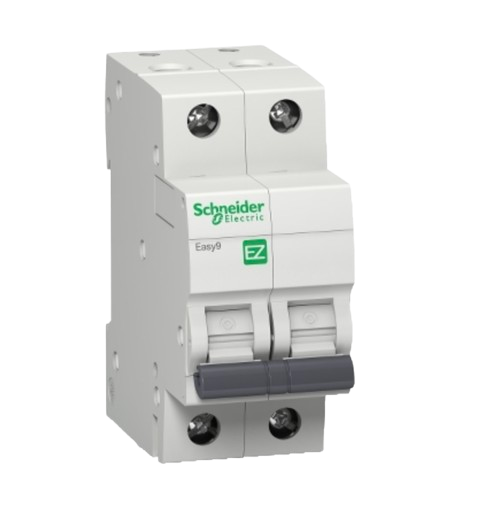

The Schneider Electric EZ9F76232 is a double-pole miniature circuit breaker from the Easy9 series, designed to provide reliable protection against overloads and short circuits in residential and commercial electrical installations. It features a 32A rated current, C-curve tripping characteristics, and a 6kA breaking capacity for safe and efficient electrical distribution.

Features

• Reliable overload and short-circuit protection.

• Thermal-magnetic tripping mechanism.

• C-curve characteristics for general electrical loads.

• Double-pole design for simultaneous circuit disconnection.

• Compact design with easy DIN rail installation.

• Suitable for residential and commercial applications.

Key Specifications

• Make: Schneider Electric

• Model: EZ9F76232

• Product Range: Easy9

• Product Type: Miniature Circuit Breaker (MCB)

• Number of Poles: 2P (Double Pole)

• Rated Current: 32 A

• Tripping Curve: C Curve

• Breaking Capacity: 6 kA (6000 A)

• Rated Operational Voltage: 415 V AC

• Tripping Technology: Thermal-Magnetic

• Mounting Type: DIN Rail

• Applicable Standard: IEC 60898-1
